Tablet motherboard manufacturer for fanless industry MINI motherboard Intel core3 I5 3210M 2 5ghz
Click to see details
Tablet motherboard manufacturer for fanless industry MINI motherboard Intel core3 I5 3210M 2 5ghz

Tablet motherboard manufacturer for fanless industry MINI motherboard Intel core3 I5-3210M 2.5ghz

100 % of buyers enjoyed this product!
Availability: in stock
TODAY'S DEAL Ends in: 04:36:18
Price:  US $245.00 / piece
Sale Price:  US $227.85 / piece
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Share:

Tablet motherboard manufacturer for fanless industry MINI motherboard Intel core3 I5-3210M 2.5ghz

TOP77 Motherboard Can be applicated in many places:Firewall;AD Player;AIO ; Thin Client; HTPC;VOD; IPC; POS etc.

Specifications:

Form Factor

Mini-ITX 17cm×17cm

Chipset Manufacturer

Intel

CPU

Onboard CPU,support Intel Mobile sandy Core3 i5-3210 Processor

Chipset

Intel® HM77 Express Chipset Optional.

L2/L3 Cache

L2 Cache:2×256KB;L3 Cache:3MB.CPU integrated.

BIOS

AMIEFI32MB SMT/DIP-SPI Flash ROM

RAM

1*DDR3 DDR3 Onboard 4gb memory

Graphics Core

Intel HD Graphics 4000 (CPU Integrated ).

Sound

Onboard HDA ALC662,provide MIC-IN/LINE-OUT and expansion header.

Network

Onboard 1*Gigabit Ethernet,support PXE and Wakeup on LAN.

Storage

2*MINI PCIE 1*MINI SATA

LVDS

Support dual channel 24bit LVDS connector;Resolution maximum:1920*1200

USB

8*USB (4 external-USB3.0;4 from expansion header-USB2.0)

Expansion Sockets

1*Mini SATA socket for SSD;2*Mini-PCIE socket for WIFI/3G;1*SIM card slot for 3G

Rear Panel I/O

1*12V -DC power_Jack

1*power amplifier

1*HDMI (Resolution maximum:(1920*1200)

1*VGA port (Resolution maximum:(2048×1536)

4*USB 3.0 port

1*1000M RJ45 Ethernet port

1*Audio I/O interfaces (Line_out,Mic_in)

Internal I/O

4*USB 2.0 expansion header

2*CPU/SYS Chassis fan connectors

1*Audio I/O expansion header

6*COM expansion headers (support RS232/422/485)

1*GPIO expansion header(8 bit)

1*VGA expansion header

1*HDMI expansion header

1*LVDS

1*Audio power amplifier connector

1*SPDIF expansion header

1*LPT(2.0MM)expansion header

Power Interface

12V -DC power_Jack;4PIN/2PIN 12V_DC connector

Working Temperature

-20°C~+60°C (-4°F~140°F)

Storage Temperature

-40°C~+85°C (-40°F~185°F )

The Motherboard support Windows7/8 32bits/64bits OS /Liunx System/ X86System

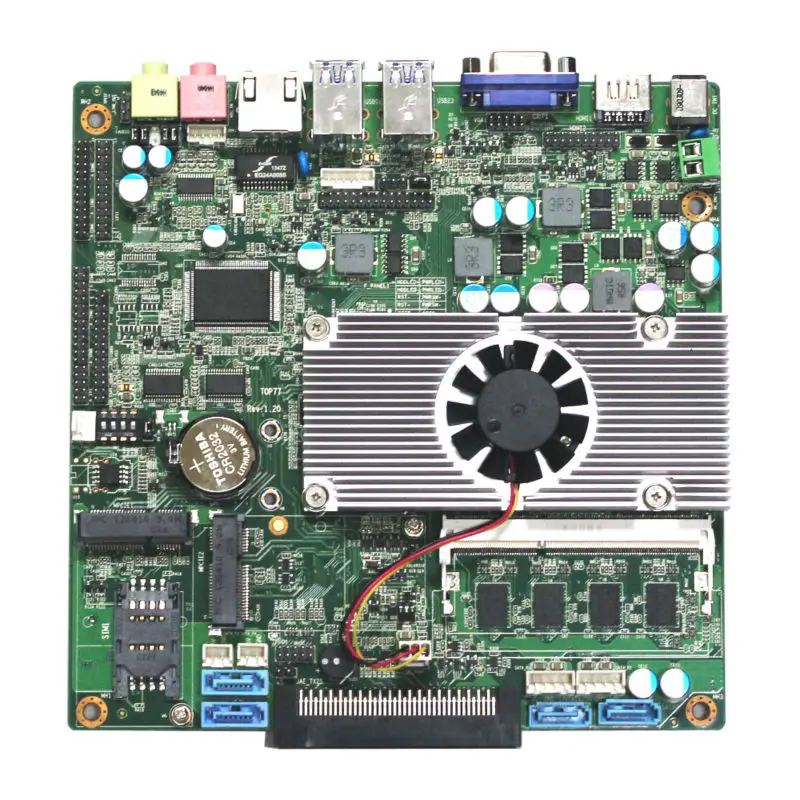

The photo pictures of our Products :

Other Advantages:

1.Embedded high performance industrial motherboard.

2.1*DDR3 SODIMM 204 Socket,maximum up to 8GB DDR3 memory,1066/1333/1600MHz

3.Support WIFI/3G,SIM card slot onboard,1*1000M RJ45 LAN port,support Mini SATA SSD ,more efficiency.

4.Support power booting/plug and play,Timer-power-on.

5.Provide 4*USB3.0 ports.

6.Support 1080P,HDMI resolution maximum up to:1920*1200;Support 24bit dual channel LVDS;VGA resolution maximum up to:2048*1536.

7.Reliable, High stability, Low noise, low power consumption.Perfectly suitable for Kiosk/AD Player/AIO machine/IPC/VOD/Car PC/HTPC etc

The package:

kage

Retail sample (size)

Batch (size)

delivery details

Carton box (20pcs)

220*210*75mm

510*440*230mm

Within 3 days (sample order)

Carton box (30pcs)

220*210*75mm

620*400*190mm

7-25 days in a bulk

The kits includes: Vga cables/sata Cables/sata power cables/CD driver.

The Certifications:

Buy Tips:

(1)We promise that all products are tested before shipping!

(2) Our shipping method by China post air mail, arrive time is 15-60days,some far country need more than 60days , Seller is not responsible for delivery time, It is provided by the carrier, excluding Holidays, and may vary with package and destination. If delivery is delayed or items are damaged in transit, please email us.

(3) Please leave message to inform us how much for the value to declare,if buyer no request, In order to ensure buyer receive the order tax free upon import, we will declare it as a ‘GIFT’ with a lower value. This lower price does not reflect the total price you paid or the market value of the product and may not apply to countries with different tariff rules. Any import charges or fees are the buyer’s responsibility.

(4) If the products not working when you received it , there could be many reason.(please tell us in time by email with your tested pictures or message online,even video )Before installing, you must make sure others parts from your computer 100% work, otherwise it will cause my product don’t work. Sometimes it will also damage my products. if is no our responsibility,we are not Accept Returns .

(5) The products easy to damage during the transport, so please open and check the box and product when you get the goods, if the box is ruined to different shape, please take a photo and evidence for the damaged box, and then ask the postman to confirm the situation. In this way, when you give me your evidence, we can ask for the shipping company to compensate us. This is important and will protect our profit.

(6) The products any problems need to return or warranty ,the return shipping costs paid by the buyer, thank you!
