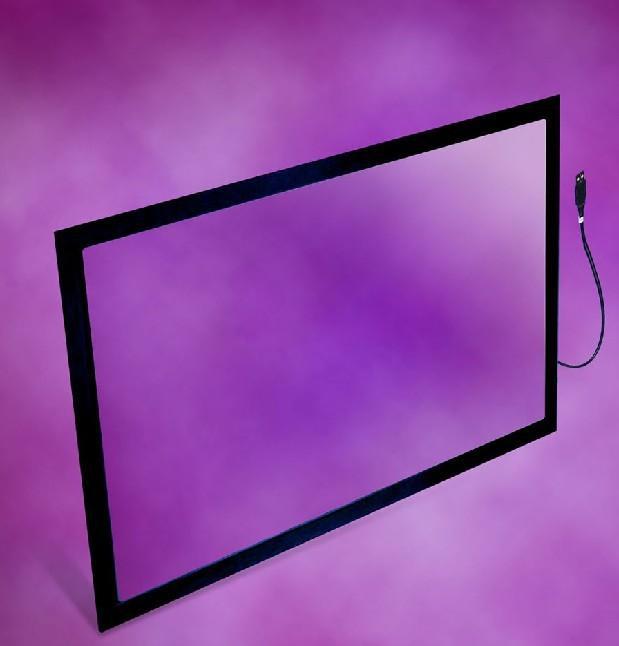

HOT 50 inch 10 points IR multi touch screen overlay kit with USB power for LCD
Click to see details
HOT 50 inch 10 points IR multi touch screen overlay kit with USB power for LCD

HOT! 50 inch 10 points IR multi touch screen overlay kit with USB power for LCD& Monitor, touch table, kiosk etc

80 % of buyers enjoyed this product!
Availability: in stock
TODAY'S DEAL Ends in: 04:36:18
Price:  US $295.00 / piece
Sale Price:  US $265.50 / piece
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Share:

HOT! 50 inch 10 points IR multi touch screen overlay kit with USB power for LCD& Monitor, touch table, kiosk etc

Infrared Touch Panel Working Principal

IR Touch Screen is a touch frame which is usually installed in front ofthe display screen. The frame is integrated with printed circuit board which contains a line of IR-LEDs and photo transistors hidden behind the bezel of thetouch frame. Each of IR-LEDs and photo transistors is set on the opposite sides to create a grid of invisible infrared light. The bezel shields the parts fromthe operation

Super advantages for 50 inch 10 points IR multi touch screen :

  • 10 points touch (Multi touch)
  • Support zoom in/out, display rotation
  • USB interface, Drive free, plug and play
  • Supporting 10 points touch under windows7, windows8 and Android system
  • Supporting single touch under Linux and windows xp System
  • Withstands severe environments
  • Stable, no-drift calibration performance
  • Vandaproof and abrasion-resistant screens, ideal for rugged applications
  • Parallax-free performance for LCD displays
  • Sealable against contaminants
  • Operable in various light conditions, indoor and outdoor

Infrared Dual/Multi Touch Basic Characteristics:

  • 10 points touch (Multi touch)
  • Support zoom in/out, display rotation
  • Withstands severe environments
  • Stable, no-drift calibration performance
  • Vandaproof and abrasion-resistant screens, ideal for rugged applications
  • Parallax-free performance for LCD displays
  • Sealable against contaminants
  • Operable in various light conditions, indoor and outdoor

Specification

Size

General Size

15 inch to 159 inch

Fit in with

Panel display device

Performance

Touch Mode

Single-point touch, Multi-touch, drag, draw-line, rotate, zoom in/out

Resolution(Interpolation)

4096*4096

Linearity Error

<1.5mm

Response Speed

<15ms

Mechanical

Input Method

Finger or gloved hand (rubber ,cloth or leather)

Minimum Touch Object

2.5 mm X 2.5 mm

Vandal-proof

No break by 1-pound steel ball dropping from 130 cm high

Optical

Glass:

Without glass, 4mm glare, AG (anti-glare), or AR (anti-reflective) glass optional

Light Transmission

92%

Gloss

Antiglare surface (curved or flat): 95 ± 15 gloss units or 65 ± 15 gloss units

Environmental

Temperature

Operating Range: -20°C ~ 70°C;

Storage Range: -40°C ~ 85°C

Relative Humidity

Operating Range: 0%~90% RH (no dew falls)

Storage Range: 0% to 95% RH (no dew falls)

Ambient Light

Direct sunlight 90°to ±30° to the display surface Touch detection operational

Direct sunlight all angles to display surface Free of false touch reports

Electrical

Operation Voltage

Typical +DC 5V, +4.75V to +5.25V

Power Supply

Size under 52”(include 52”)USB or PS/2 Interface, power ripple max.200mV rms

Size above 52”(52” not included): external AC-DC power adaptor

Interface

Full Duplex USB 2.0 (Full Speed) Plug and play compatible

Plug and play compatible

Current

Typical 150MA@+5VDC; 350mA, maximum

Power

<1.5W, operating current<300mA

Electrostatic Protection

15 kV air / 8 kV contact discharges (EN61000-4-2,1995 :Level 4)

Controller

Integration inside touch panel

Agency Approvals

CE, FCC, Rohs

Operating System

Operation System :windows 7, windows8, Android, Linux
