Note! Note! Note! Please read carefully the following instructions and understand the use of this product before you buy.
Because this product is very special,the company does not accept the dispute because there is no understanding of product uses,Or do not communicate with the company issued a bad review or assessment.thanks
Buy Now Get a 1-meter high quality CAT6 Flat Network Cable
Note! Please read carefully the following instructions and understand the use of this product before you buy
The whole network platform Exclusive Product ! One RJ45 8P8C cable into two 8P4C jack(Fast Ethernet using only 1236)
If you need more bulk purchasing, after place order please do not rush to pay, we will give you more discount.
This product can be customized
Product Name: CAT5E ethernet cable junction box extender Network splitters
RJ45 network cable

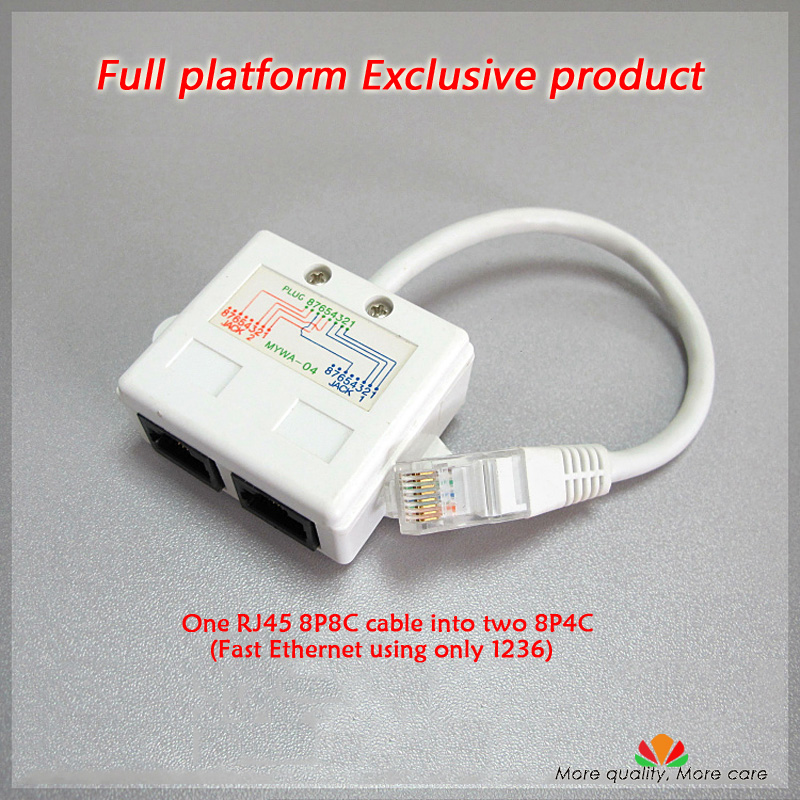

One RJ45 8P8C cable into two 8P4C socket
(Fast Ethernet using only 1236)
Eight-core network switch 1236/4578
1. Function: to extend the network cable
2. Advantage: reliable connection, look beautiful and can be permanently installed
3. Interface Type: RJ45 Interface Male to dual Female
Note: Use only one of this product can not allow two computers while online.
The network adapter is pure physical connection, do not have assigned IP address of the function, can not be equated to a router or switch, two computers can not access the network at the same time.
Network lines are generally 8-core line, usually using only four-core line can be connected, for RJ45 8P8C, it is 1236 this group lines; in a patch panel or switch end use of the product, and then in the socket terminal at the use of a product, so use this extra interface 4578, the terminal fitting can connect two computers, patch requires 2 pcs patch cord jump to the other end on the same switch on the same network, you can also jump to different Switch on different networks, such as an internal network and an external network. By using this splitter can save more on a network cable to a patch panel or switch.
So when you have only one RJ45 8P8C network cable, and you want two computers can simultaneously access, you must use one pair of this product
Generally in use, network cable 8 wires as long as 1236 sequence is turned on, you can use the network.
4578 may not be connected, but the normal wiring, 8 wire cable is to be received in advance of the crystal.
The pin RJ-45 function (10BaseT / 100BaseTX):
1—The positive data transmission Tx +
2—Transmission of data negative Tx-
3—Receive data positive Rx +
4—Alternate (when 1236 fails, automatic cut-use state)
5—Standby (when 1236 fails, automatic cut use state)
6—Receive data negative Rx-
7—Standby (when 1236 fails, automatic cut-use state)
8—Standby (when 1236 fails, automatic cut-use state)
Note: 4,5,7,8 four wires in the case of need will be used as a POE power supply lines, for a group of 4,5 or 7,8 as a group
