1U rack 19 24 port switch poe 24v power supply for Ubiquiti UniFi Nanostation Mikrotik CPE
Click to see details
1U rack 19 24 port switch poe 24v power supply for Ubiquiti UniFi Nanostation Mikrotik CPE

1U rack 19″ 24 port switch poe 24v power supply for Ubiquiti UniFi Nanostation Mikrotik CPE Repeater Access Point wifi switch

90 % of buyers enjoyed this product!
Availability: in stock
Price:  US $139.00 / piece
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Share:

Pls note this poe switch is not compatible with IEEE802.3af/at.

1,If your device support IEEE802.3af/at,then this poe switch is not suitable.

2,If your device do not support any poe,and you want to use this poe switch,then need to add a passive poe splitter to help with.

3,If your device support 4/5+,7/8- passive non-IEEE802.3af/at POE,then you can use this poe switch to power your device deirectly.

1U rack 19″ 24 port switch poe 24v for Ubiquiti UniFi Nanostation Mikrotik RouterOS CPE Repeater Access Point wifi POE

Description

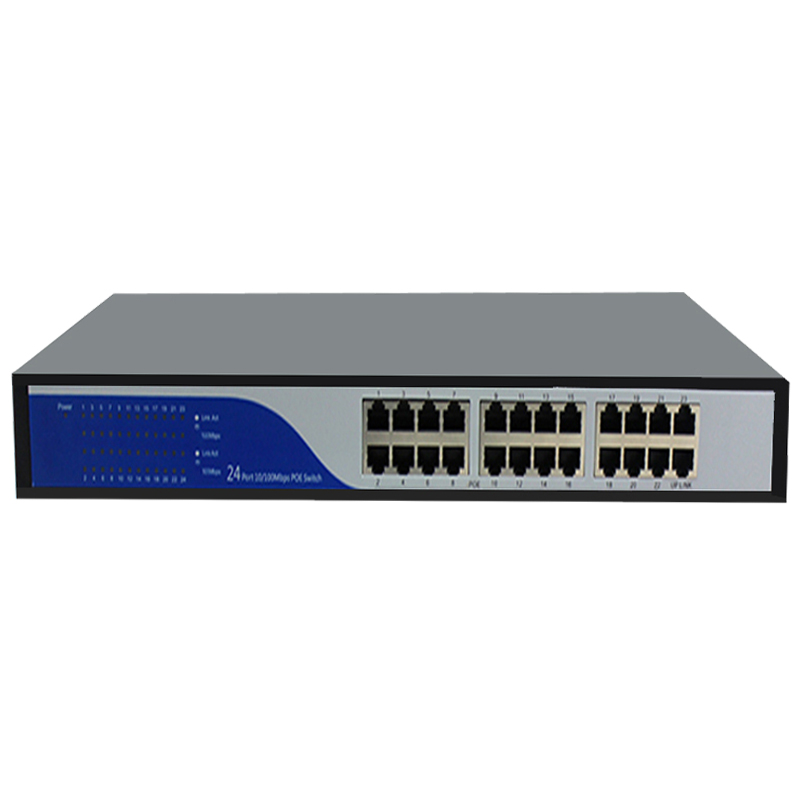

PL-PSE1024DI-B1 is a 19 inch rack-mounted 24 port switch poe 24v.Power pin 4/5+,7/8-.Cost-effective design with stable performance for delivering reliable POE to those device,which need 24v dc input but located where hard to get power source.

Connections:

23 poe ports connected to UBNT unifi/MikroTik routerboard routeros/other 24v poe wifi products etc

1uplink connected to router/switch/router

Power supply 150w

Single poe port output max 18w

Poe budget 120w

POE distance 90meters(by high quality cat5/5e/6/7 ethernet cables)

Applications

24v poe switch is used for like Ubiquiti network wifi products,MikroTik RouterOS CPE/router/ap/repeater/bridge/booster,which need 24v power&dats

Features

l 24 10/100mbps rj45

l 23 passive poe,24v output per port.NOT compatible with IEEE802.3af

l 150w internal power,each output max 30w.POE power budget 120w

l POE distance max 90meters with high quality network cables

l unmanaged,no need to config,plug n play

l defult fixed vlan(all 23 poe ports only can communicate with uplink but cannot communicate btw 23 ports.if no need fixed vlan function,pls contact us)

l 19″ rack mount metal case

l mac address table 4k

l LED indicators for power,data/poe

Specifications

Standards

IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet

IEEE 802.3x flow control

protocol

CSMA/CD

Transmission Rate

Ethernet 10Mbps (half duplex),20Mbps (full duplex); 10BASE-T:14,880pps/port
Fast Ethernet 100Mbps (half duplex),200Mbps (full duplex); 100BASE-TX :148800pps/port

Topology

Star

Network Medium

10Base-T:Cat 3 or above Cat.3 UTP(≤100m)

100Base-TX:Cat 5 UTP(≤100m)

Number of Ports

24 10/100M RJ45 ports

POE Ports

23 passive 24v POE Ports

UPLINK

1 UP-Link

Transmits Method

Store-and-Forward

Over Voltage/Current/Short Protection

The output can be shorted permanently without damage

Temperature

Operating Temperature -15 C~460 C (5 F~140 F)

Storage Temperature -40 C~70 C (-40 F~158 F)

Humidity

Operating Humidity 10%~90% non-condensing

Storage humidity 5%~95% non-condensing

Switch capacity

4.8G

LED Indications

1* power LED(Power: Red)

48* port LEDs(Link/Act: Green)

Power supply

150w internal

Dimension(W x H x D)

440*180*44mm

Case Material

Steel case

Package:

1*24 port poe switch

1*power cable plug(eu/uk/us/au)
